Adafruit 16-Channel PWM / Servo Bonnet for Raspberry Pi (ADA3416)

Support Product Questions
1

This is a placeholder topic for “Adafruit 16-Channel PWM / Servo Bonnet for Raspberry Pi” comments.

The Raspberry Pi is a wonderful little computer, but one thing it isn’t very good at is controlling Servo Motors - these motors need very specific and repetitive…

Read more

1 Like
2

Hello, I’m looking to confirm if this board included the female header to connect on to the Pi.

In one of the pictures it looks like a Surface mount header installed on the underside of the board but it’s hard to tell and I can’t be sure from the description.

Thanks

1 Like
3

Doesn’t it support Raspberry Pi 4?

1 Like
4

Hi John,

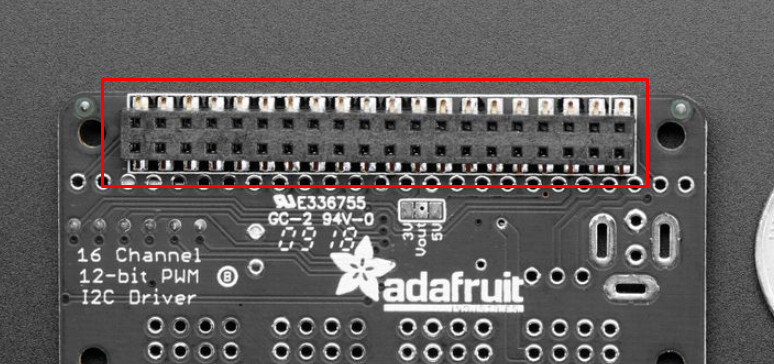

Yeah it looks to be pre-soldered onto the bottom of the HAT based on the pics:

image774×364 96.4 KB

For future readers its also worth noting that you have to solder some bits with this product!
