How do we plug sonar into Bit:bot XL

Support
1

Hi
My grandson & I just purchased the HC-SR04 & Bit:Bot XL. But we are having trouble figuring out how to plug the sonar into the bit:bot.
The first photo show the socket on the Bit:Bot with 5 “holes”

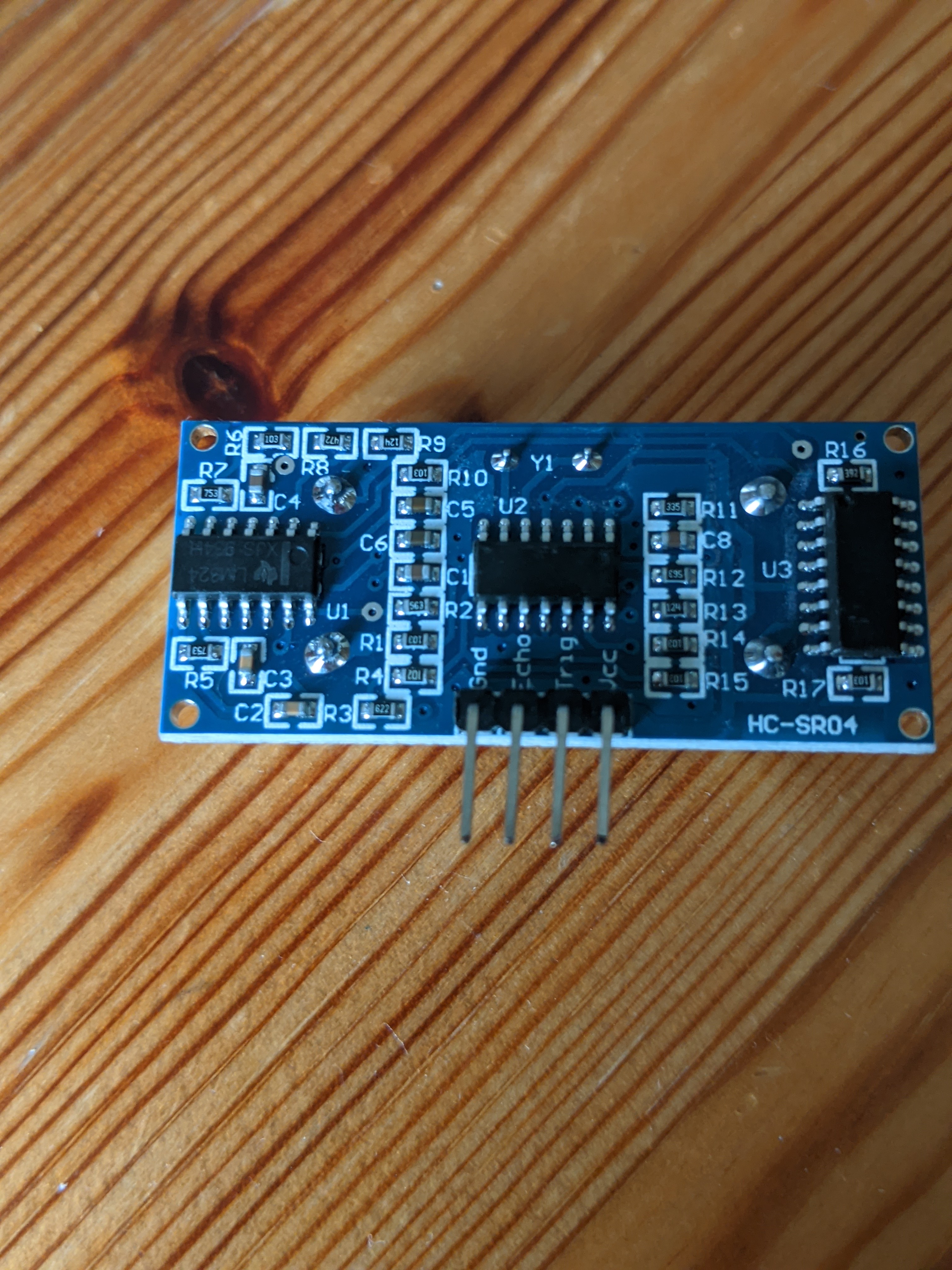

The second shows the 4 pins on the sonar.

socket
socket3024×4032 1.94 MB
pins
pins3024×4032 2.24 MB

How do we plug the sonar in?

Thanks
Tony

2

Hi Tony,

It looks like you have purchased the wrong sensor for your bit bot. It seems you would need an ultrasonic sensor with 5 pins instead of 4. This is the one that was suggested on our product page for the Bit:Bot XL. I’ve fixed up that link and asked our purchasing team to bring the correct sensor online from our suppliers.

What I can do as a resolution is to arrange a store credit for you and have that sent out if you wish. Please send us an email by replying to your Order confirmation/invoice email and we’ll get a soltuion for you ASAP!
