Hi Joshua,
While not open source the design is quite simple - what specifically are you after?
PS: The Glowbit sticks are open source!
Hi Liam,
The dimensions for one, and the pin placements for a kicad footprint.
Thanks
I think you should find then in the data sheets.

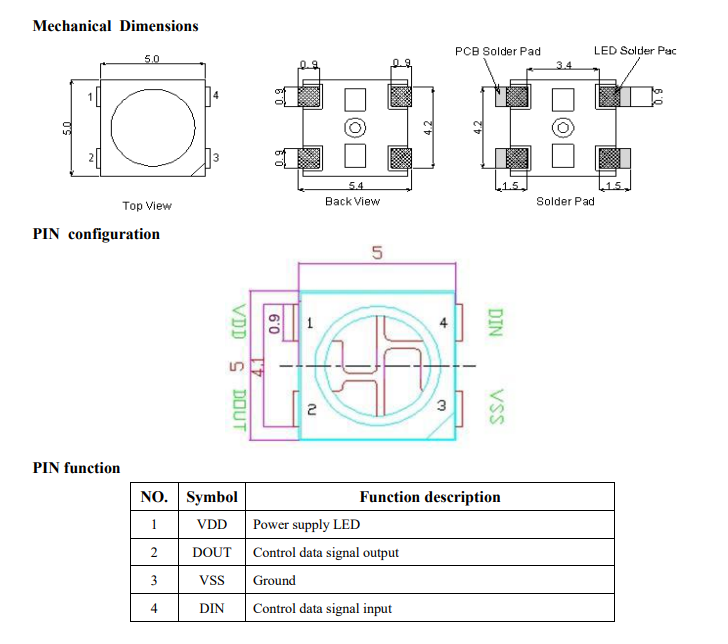

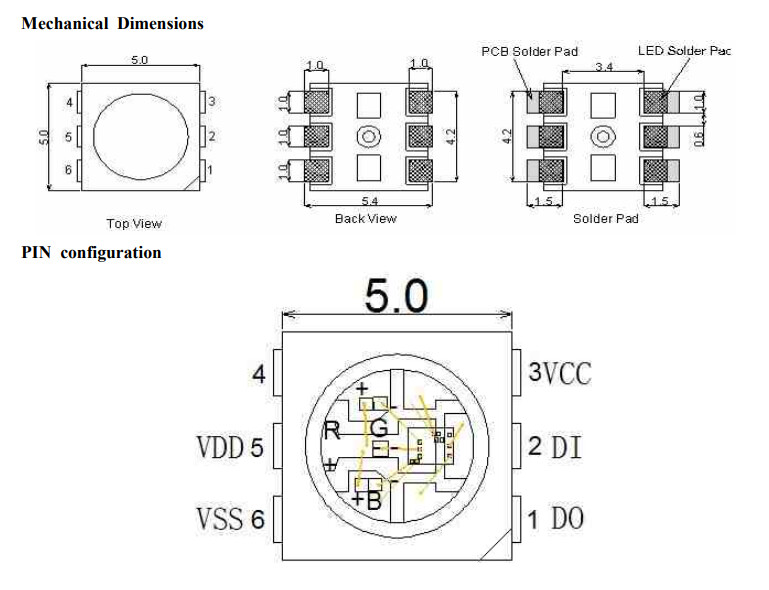

e.g. src: https://cdn-shop.adafruit.com/datasheets/WS2812.pdf
Note there are a few versions of the WS2812, eg. WS2821b so find the data sheet for the ones you plan to use.
and the WS812b - note is different.
src:https://cdn-shop.adafruit.com/datasheets/WS2812B.pdf
the document page states the WS2812, but the Image shows the 4 pin that look more like the WS2821b
1 Like
