Adafruit I2S Audio Bonnet and Dual RCA Jack for Adafruit I2S Audio Bonnet


Out of curiosity, I have just received the 2 items in the topic heading and I’m wondering why when connected together the red connector of the RCA connects to the left on the board and the white to the right. They are all the same even the pictures of the item on this site, but it is normal that red be right speaker and white be left.


1 Like

Hey John,

Welcome to the forum!

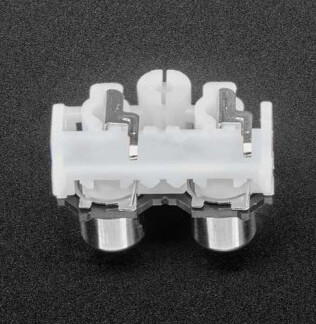

Just taking a look at the product page for these, it seems the colour coding is just the opposite to what it normally should be… The photo below from the RCA jack page doesn’t seem to suggest any circuit flipping wizardry, so red will be left and white will be right as it shows on the PCB of the Audio Bonnet.
