Gravity: Digital Water Flow Sensor Dimensions

[Tristan36959]

Could you please provide dimensions of the Gravity: Digital Water Flow Sensor 1/8"? As many dimensions as possible would be greatly appreciated as it’s for a CAD model ahead of purchase arrival.
Thanks very much!

[Oliver]

Hi Tristan,

No worries. I’ve got one from stock and am measuring it up at the moment

[Liam]

Hi Tristan,

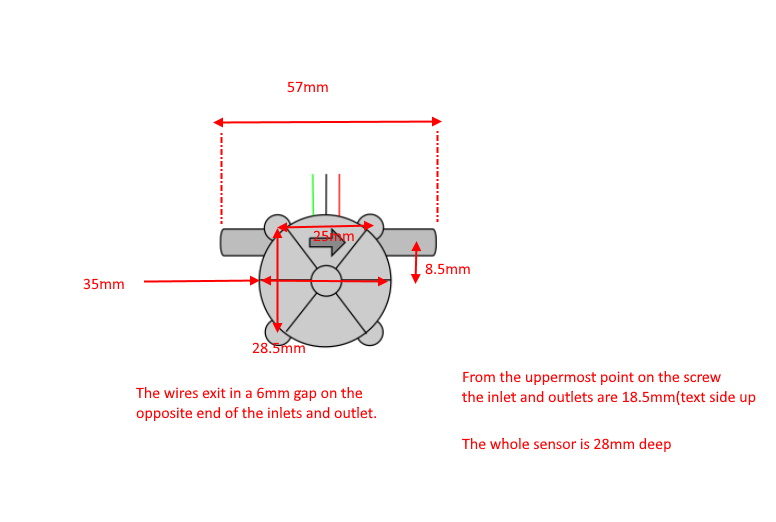

Please find attached some rough dimensions for the sensor.

If you need any other dimensions and we have some in stock at the same time we can grab those!
Hope this helps!

Liam.
