This is a placeholder topic for “Logic Level Converter Bi-Directional” comments.



If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. The SparkFun bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side.

Read more

Hi, I bought this convert. But I found out I can’t attach it to my solderless board since it doesn’t have legs. What should I do, or what product should I buy?

1 Like

Hi Yifeng,

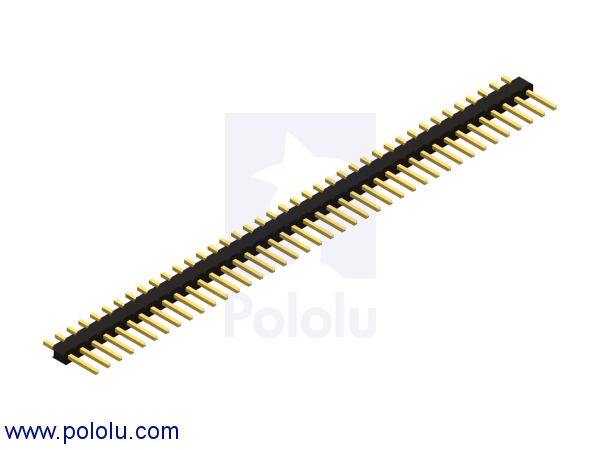

I’d recommend grabbing one of these breakaway headers:

And here’s a handy youtube video:

I’ve just added them as a recommended essential on the product page too.
