7 Segment Display (2-Wire, 0.5") (CE09446)

Support Product Questions
1

This is a placeholder topic for “7 Segment Display (2-Wire, 0.5”)" comments.

Perfect for when you need to display the time or some simple sensor read-outs, all with two pins!

Read more

1 Like
2

Can someone recommend a mounting kit for this? (Preferably with spacers so I can mount it flush with some acrylic and have the pins safely underneath)

1 Like
3

These kits are very useful for mounting parts, although a little expensive.
Core also has M2 & M3 kits.

Cheers
Jim

2 Likes
4

Hi @James46717

From the product description

M2 37mm x 20mm mounting holes to make mounting and viewing easy.

Is M2.5 different form M2?
I can see alot of M3 but not many M2 Kits.

1 Like
5

M2 kits I have found very useful.

Cheers
Jim

PS the M refers to the size in mm.

2 Likes
6

Hi Pixmusix

Yes, 0.5mm larger in diameter.
As Jim says

Cheers Bob

1 Like
7

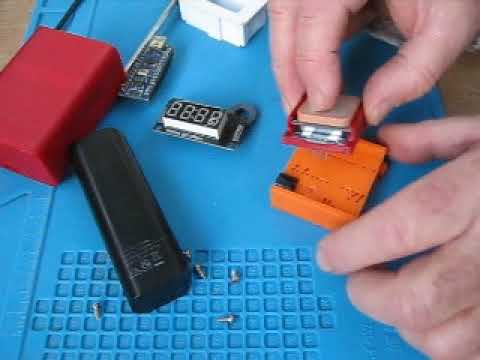

I’ve had success with 3D printing housings:

2 Likes
