Powering a 12v solenoid with a 12v dc powersupply

Support Product Questions
1

Does anyone know how I can power the Adafriut 12v push/pull solenoid (SKU: ADA412) using a typical $15 Ac 240v To Dc 12v transformer?

The attached data sheet shows a circuit and I am not sure what each of the components are or if core-electronics sells them.

412_Web.pdf (1.5 MB)

2

Hi Jenn,

Do you have any more information about how you want to use it? The application changes how you’ll be best to hook it up. There’s a few good examples in that PDF, and we’ve got a good tutorial on controlling small solenoids with Arduinos here: https://core-electronics.com.au/tutorials/arduino/solenoid-control-with-arduino.html

Regards,
Oliver
Support | Core Electronics

3

I am attaching it to a lever. I don’t want to control or power it using an arduino or micro. I’d like to know what I need to buy from Core Electronics that will let me power the 12v solenoid from a 12v dc transformer.

Could you please suggest a parts list?
Or would cutting the wires on the transformer do the trick?

4

Hey Jenn,

So to confirm, you’re looking for a switch between the 12V supply of the transformer, and the solenoid we supply that you linked above?

Bryce
Core Electronics | Support

5

I’m looking for a way to connect my transformer that has a cylindrical plug into a connector that can then run to a switch (And the other parts of a circuit I’d need to stop the switch melting, back propagating current etc) and then to the solenoid. Is this possible?

6

This could be used to connect the transformer. (dont think Core have one like this)
EDIT: Well I was wrong, see info from post from Oliver below. (Link deleted)

This toggle switch would more than handle the solenoid current.

Regards
Jim

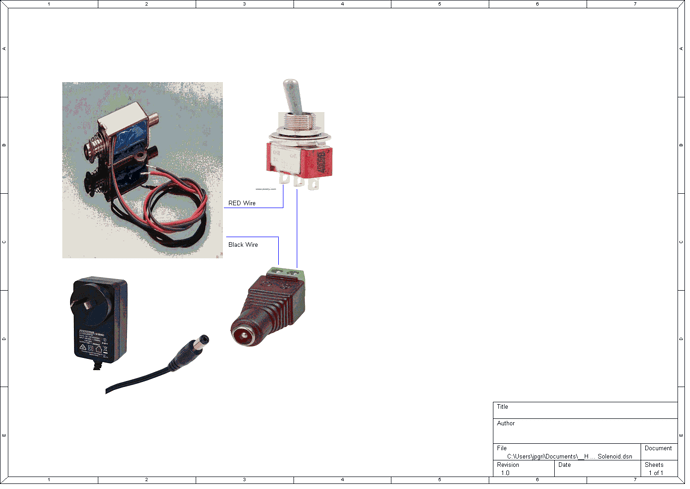

EDIT: Connection Diagram. I think this is what you are asking, apologies if I am wrong.
The 2.1 socket has a + and - on the top, the + is 12V the - is Ground. For the solenoid to operate the red wire needs 12V and the black wire needs Ground.

Solenoid
Solenoid1495×1060 86.1 KB

2 Likes
7

They’ve actually got 3!

3 Likes
8

Thanks everyone for your help!

9

i thought id post this for switching D.C for others that may need to throw a single solenoid in and out by switching the polarity any voltage/current that the switch is rated at may be used

Photo0022480×640 96.4 KB

1 Like
10

you could also wire this to the coil of a relay d.p.d.t and use a latch pulse or a straight signal to trigger it.

11

Solenoid doesn’t care about DC polarity.
Cheers Bob
