This is a placeholder topic for “Audio Amplifier Module with Speaker for Arduino” comments.

An easy way to add audio effects or music to your next project. The compact board measures just 47mmm long and features a 23mm diameter speaker, 2W amplifier, and a trimpot for volume control. Powered from 5V.

Read more

1 Like
2

Does this have a coupling capacitor? I want to drive drive from an Arduino PWM pin

1 Like
3

According to the data sheet this device is driven by a digital output, so no coupling capacitor would be required.

1 Like
4

How much is the gain?

5

Hi Tepalia,

Looks like the amp chip is rated for 2W, but the speaker is only rated for 0.15W. Any other specs you were after?

-James

1 Like
6

Is there a PCB footprint / drawing we can use for adding connectors / screw holes for permanently embedding this into projects?

2 Likes
7

Hey @Kaylee9,

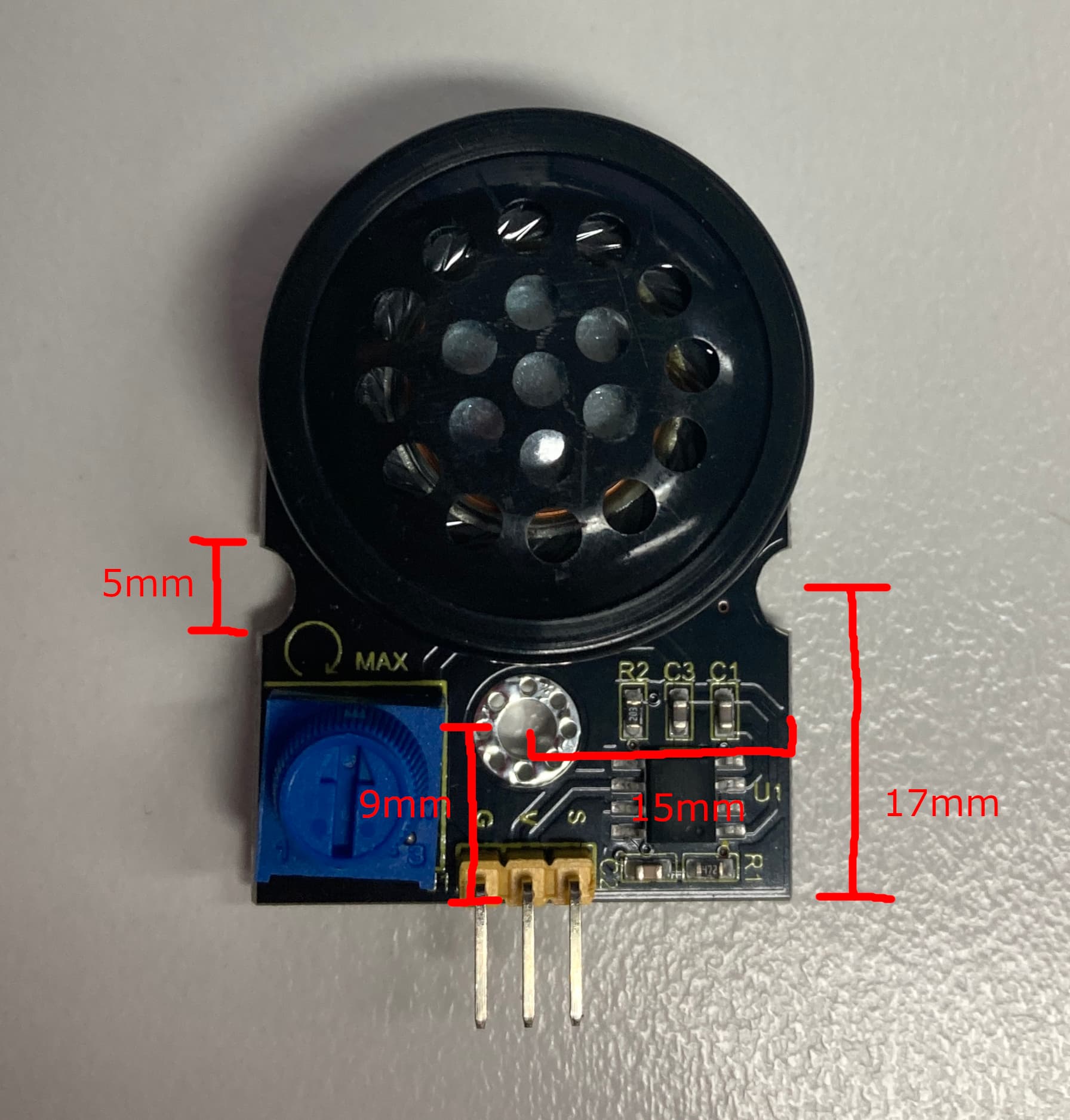

Unfortunately, it doesn’t seem like a PCB footprint exists for this module. However, I pulled one from our stock and measured a few of the sections that may be useful to you (please excuse my MS Paint art skills).

Measurements
Measurements1792×1876 192 KB

The middle mount point is centred left to right with 15mm between its centre and the sides. It sits 9mm from the bottom of the board. This is a 4mm diameter hole

The left and right cutouts sit 17mm from the bottom of the board to their centre. These cutouts are semicircle with a diameter of 5mm.

Hope this helps!

2 Likes
8

This DOES help; thankyou very much :smiley:
MS paint skills are original skills :sunglasses:

3 Likes
9

Paste this into KiCAD PCB Footprint editor…
Free for anyone to use in their project.

(footprint "clipboard:522a4034-d32d-4d2a-948e-617bafc9bca7" (version 20240108) (generator "pcbnew") (generator_version "8.0")
  (layer "F.Cu")
(uuid "518243da-dafe-4a06-b06b-782a5d610774")
  (at 0 0)
  (property "Reference" "" (at 0 0 0) (layer "F.SilkS")(uuid "3f456aae-5ed2-4502-9974-5ce885727491")
    (effects (font (size 1.27 1.27) (thickness 0.15)))
  )
  (property "Value" "" (at 0 0 0) (layer "F.Fab")(uuid "270a6751-2959-478c-a24c-67c897f0ad2b")
    (effects (font (size 1.27 1.27) (thickness 0.15)))
  )
  (property "Footprint" "" (at 0 0 0) (layer "F.Fab")(hide yes)
(uuid "af03d71e-319e-4c07-8087-583b89713574")
    (effects (font (size 1.27 1.27) (thickness 0.15)))
  )
  (property "Datasheet" "" (at 0 0 0) (layer "F.Fab")(hide yes)
(uuid "eb031022-97de-45aa-8dfc-b08db9add21a")
    (effects (font (size 1.27 1.27) (thickness 0.15)))
  )
  (property "Description" "" (at 0 0 0) (layer "F.Fab")(hide yes)
(uuid "4fb88cbd-d996-4a09-8526-f751eefa3eea")
    (effects (font (size 1.27 1.27) (thickness 0.15)))
  )
  (fp_line (start -18.54 -15.5) (end -18.44 -15.6)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "cd33319e-b372-49fb-ba21-813000a487a6"))
  (fp_line (start -18.54 -15.5) (end -18.44 -15.4)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "28678283-0ad7-4916-a155-389e965ae177"))
  (fp_line (start -17.54 -18) (end -17.54 -30)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "5c91ca12-f314-4cb6-8825-b7aa04eed099"))
  (fp_line (start -17.54 2) (end -17.54 -13)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "68f7b487-1329-407c-a4ec-e6977b763b65"))
  (fp_line (start -17.54 2) (end 12.46 2)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "664eed03-3a4b-45e0-9560-cc12be616515"))
  (fp_line (start 12.46 -18) (end 12.46 -30)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "8fe7cf60-f646-4ab6-a1dc-762beca5c848"))
  (fp_line (start 12.46 2) (end 12.46 -13)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "34505113-d079-48f5-9a45-c52a3c8aff32"))
  (fp_line (start 13.46 -15.5) (end 13.36 -15.6)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "96cadfa7-5312-443e-a1ba-d1550c2c1082"))
  (fp_line (start 13.46 -15.5) (end 13.36 -15.4)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "63c80dec-6052-41fa-a520-de23745a8a8d"))
  (fp_arc (start -17.54 -30) (mid -2.54 -40.155494) (end 12.46 -30)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "6204ad88-d3e6-4e6b-9817-cca6064d9db8"))
  (fp_arc (start -17.54 -18) (mid -15.847418 -15.5) (end -17.54 -13)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "2097c86b-18a2-4d9c-8691-d8bc9b0a78bb"))
  (fp_arc (start 12.46 -13) (mid 10.767418 -15.5) (end 12.46 -18)
    (stroke (width 0.12) (type default)) (layer "F.SilkS")(uuid "5d56593a-7eee-4e51-a1ae-6ca4e4ee9036"))
  (fp_line (start -17.54 -15.5) (end -16.04 -15.5)
    (stroke (width 0.12) (type default)) (layer "Eco1.User")(uuid "1718e8aa-6fcb-4335-abeb-f5819b1e6f74"))
  (fp_line (start -2.54 -30) (end -2.54 -40)
    (stroke (width 0.12) (type default)) (layer "Eco1.User")(uuid "fda7f8a8-8439-492d-b7f8-893255f4a07c"))
  (pad "1" thru_hole rect (at -5.08 0 90) (size 1.7 1.7) (drill 1) (layers "*.Cu" "*.Mask")(remove_unused_layers no)

(uuid "7441fe54-1902-4443-9d91-39b52c562364")
  )
  (pad "2" thru_hole oval (at -2.54 0 90) (size 1.7 1.7) (drill 1) (layers "*.Cu" "*.Mask")(remove_unused_layers no)

(uuid "c31718d5-bf2b-498f-ac7a-c67e08f97c7c")
  )
  (pad "3" thru_hole oval (at 0 0 90) (size 1.7 1.7) (drill 1) (layers "*.Cu" "*.Mask")(remove_unused_layers no)

(uuid "080a2df6-287e-46a2-9187-ebdad3a495cd")
  )
  (pad "4" thru_hole circle (at -2.54 -7.5) (size 6.3 6.3) (drill 4.3) (layers "*.Cu" "*.Mask")(remove_unused_layers no)

(uuid "0909342b-6830-46bb-98c9-f62778c5729f")
  )
)
4 Likes
10

Awesome!

Glad that was useful. Thanks for the PCB Footprint editor script!
